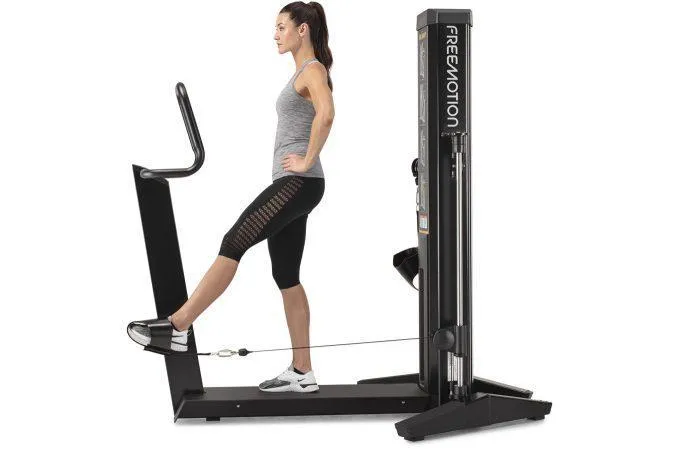

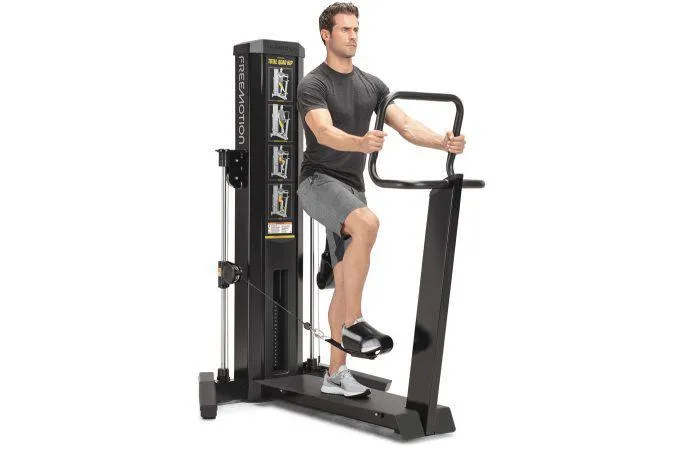

Performing leg extensions or simulating soccer kicks on the GENESIS Total Quad/Hip functionally trains the lower body from hips to ankles. This helps to build balance and increase strength in both the large muscle groups and joint stabilizers. The swivel pulleys travel along a linear guide to create progressive resistance that builds throughout the range of motion.
FEATURES
ISOLATION TO INTEGRATION

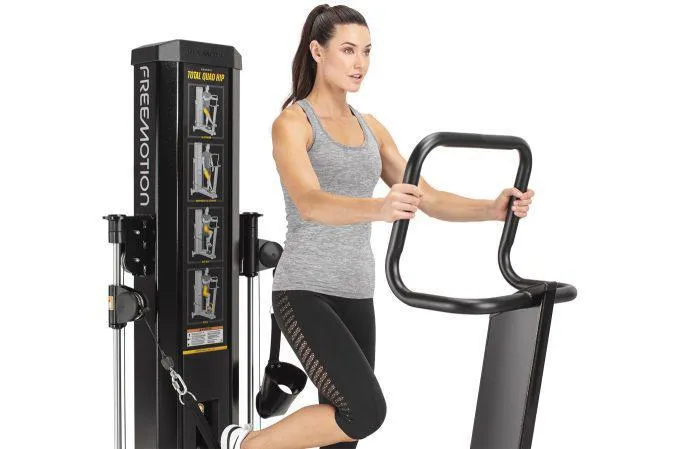

The machine features a multi-grip handle for balance and to isolate the upper body. Users can simply let go to work out unsupported and integrate more muscle groups.
WALK UP AND WORK OUT
With no required adjustments, users can simply walk up, put on the foot harness and start moving.
FOOT HARNESS
Specially designed foot harness has a boot-like shape to fit users' various foot sizes.
EXTENSIVE CABLE TRAVEL
Cable length allows for full flexion and extension: 37 in / 93.9 cm.
ENCLOSED WEIGHT STACK
The weight stack is enclosed to limit access to moving parts for safety.
BUILT TO LAST
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
KICK PLATES
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
PRODUCT FEATURE
PDF DOWNLOADSPRODUCT FEATURES
- Instructional PlacardsYes
- AdjustmentsN/A
- Resistance150 lb / 68 kg
- SeatN/A
- PulleysSwivel Pulleys
- Cable Travel37 in / 93.9 cm
- Rubber FeetMolded floor protectors
- Maximum User Weight350 lb / 159 kg
- Americans with Disabilities Act (ADA)N/A
PRODUCT SPECIFICATIONS
- Weight Stack150 lb / 68 kg
- Drop Down WeightN/A
- Weight Stack Configuration5 - 50 x 5 lb / 2.2 - 22.6 x 2.2 kg
60 - 150 x 10 lb / 27.2 - 68 x 4.5 kg - Standard Frame ColorBlack River, Flat Black, Platinum Sparkle, White River
- Optional Frame ColorCustom colors available upon request
- Plastic ColorEbony
- Standard Upholstery ColorN/A
- Optional Upholstery ColorN/A
PRODUCT DIMENSIONS & WEIGHT
- Dimensions L x W x H75 x 46 x 73 in / 190.5 x 116.8 x 185.4 cm
- Footprint75 x 46 in / 190.5 x 116.8 cm
- Weight513 lb / 232.6 kg
- Shipping Dimensions74.8 x 63.2 x 76.6 in / 189.9 x 160 x 194.5 cm
- Shipping Weight528 lb / 239.4 kg
CERTIFICATIONS
- EN957, CE
WARRANTY (US & CANADA)
- Frame10 Years
- Parts3 Years
- Cables & Labor1 Year
- Cosmetic & Wear Items6 Months
- Upholstery & Padding120 Days
